• Focus lens

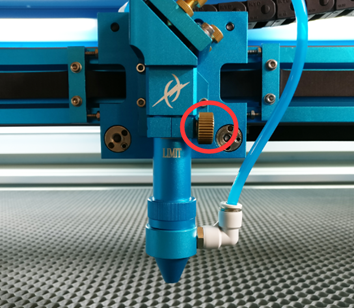

1.Remove the laser head                               2. Divide the laser head

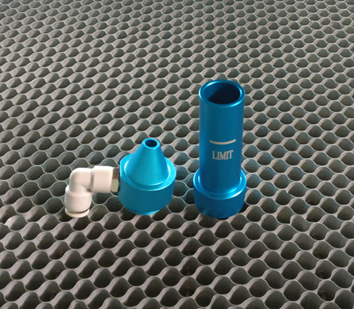

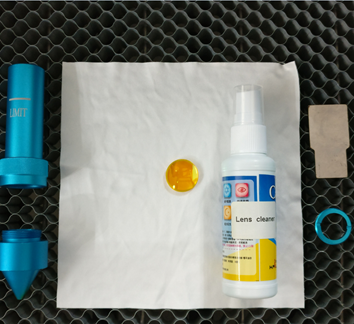

3. Remove the focus lens with the tool              4. Clean the lens with lens cloth

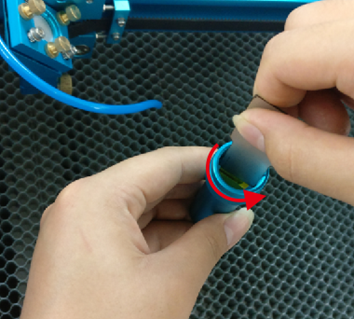

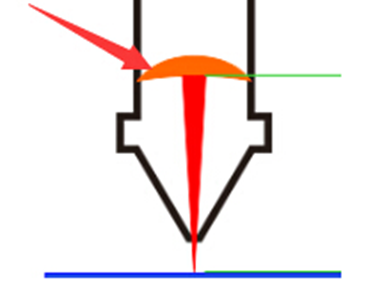

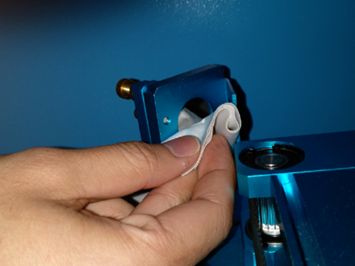

Note: The direction of focus lens mounting please refer

to below picture：

● WEEKLY CHECK LIST

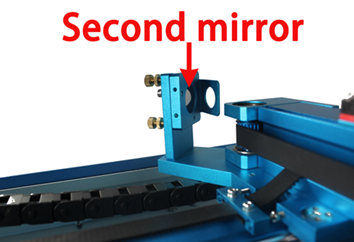

• Reflector

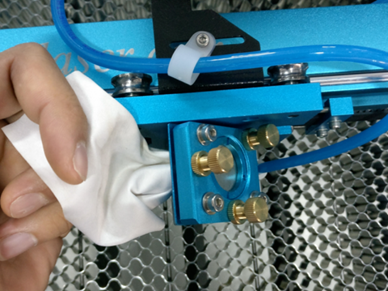

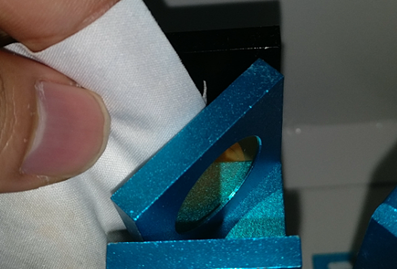

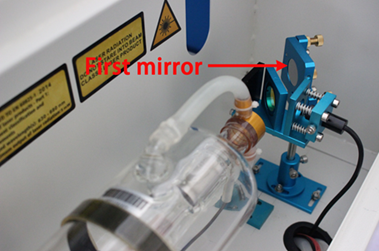

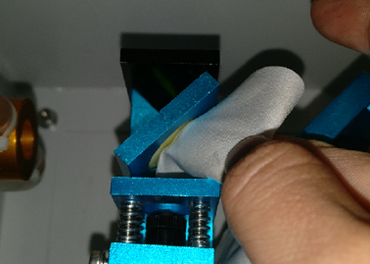

Use a lens cloth and lens cleaner to keep all mirrors clean

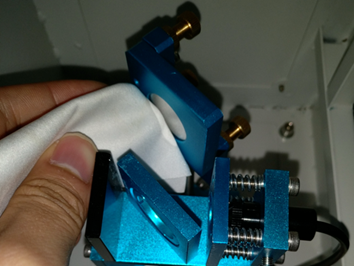

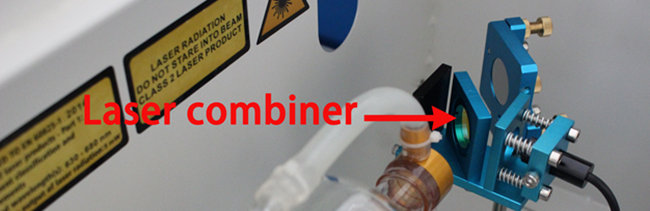

Use a lens cloth and lens cleaner to keep combiner lens clean.

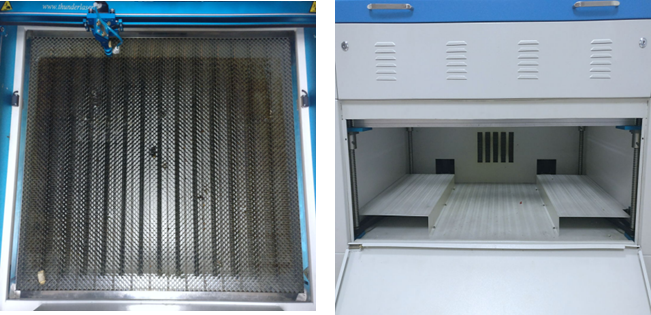

Remove these small pieces that fall into the honeycomb table and collected in the machine using small brush or vacuum

cleaner.

• Rails and Screws

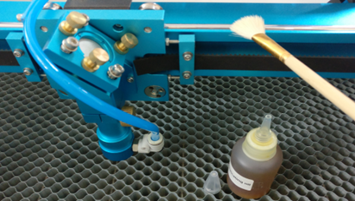

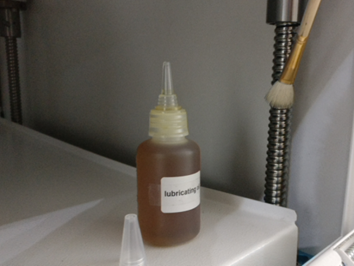

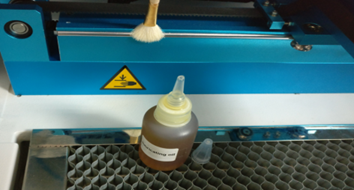

Add lubricant oil (or Rust Preventative Grease) to all rails on X&Y axis.

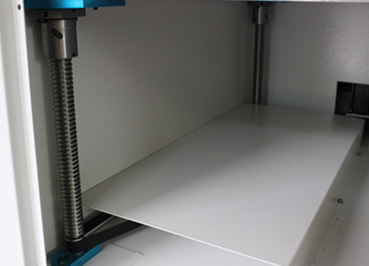

Add lubricant oil (or Rust Preventative Grease) to four Z axis screws

1. Mirror alignment;

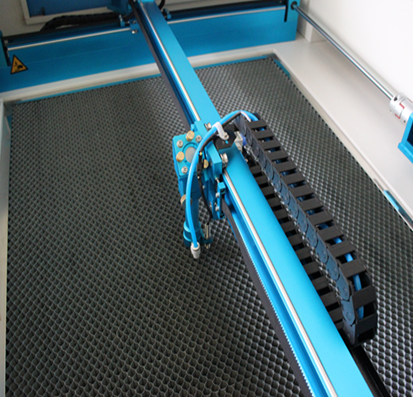

When the laser head move to four corners of the working table, please check if the laser beam lasers to the same position on

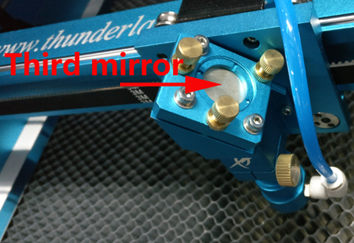

the third reflective mirror.

2. Vertical alignment;

When the laser head moves to four corners of the working table, please check if the laser beam can vertically go through

 the 10mm acrylic.

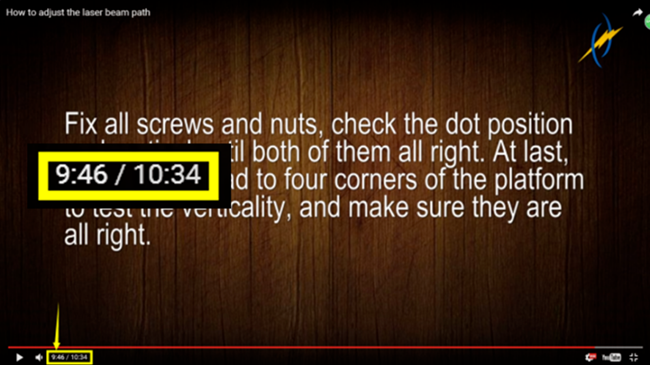

Please check laser beam path according to the video below.

• Exhaust fan

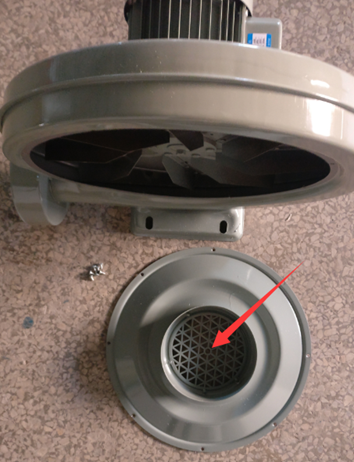

Clean the air intake

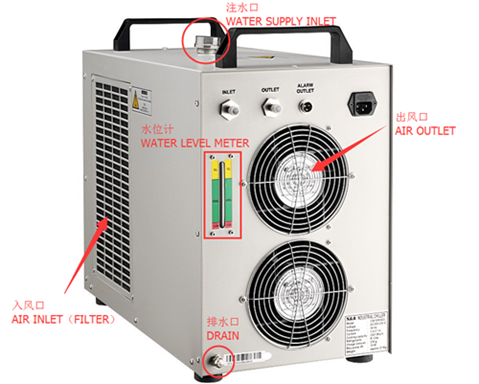

• Water chiller

Change the pure (distilled) water and clean the filters;

Note: if water drains slowly from drainage nozzle during water changing, please open the water supply

inlet.

​

More detail please refer to the Chapter 5 Maintenance of User’s Manual.
