Parameter comparison

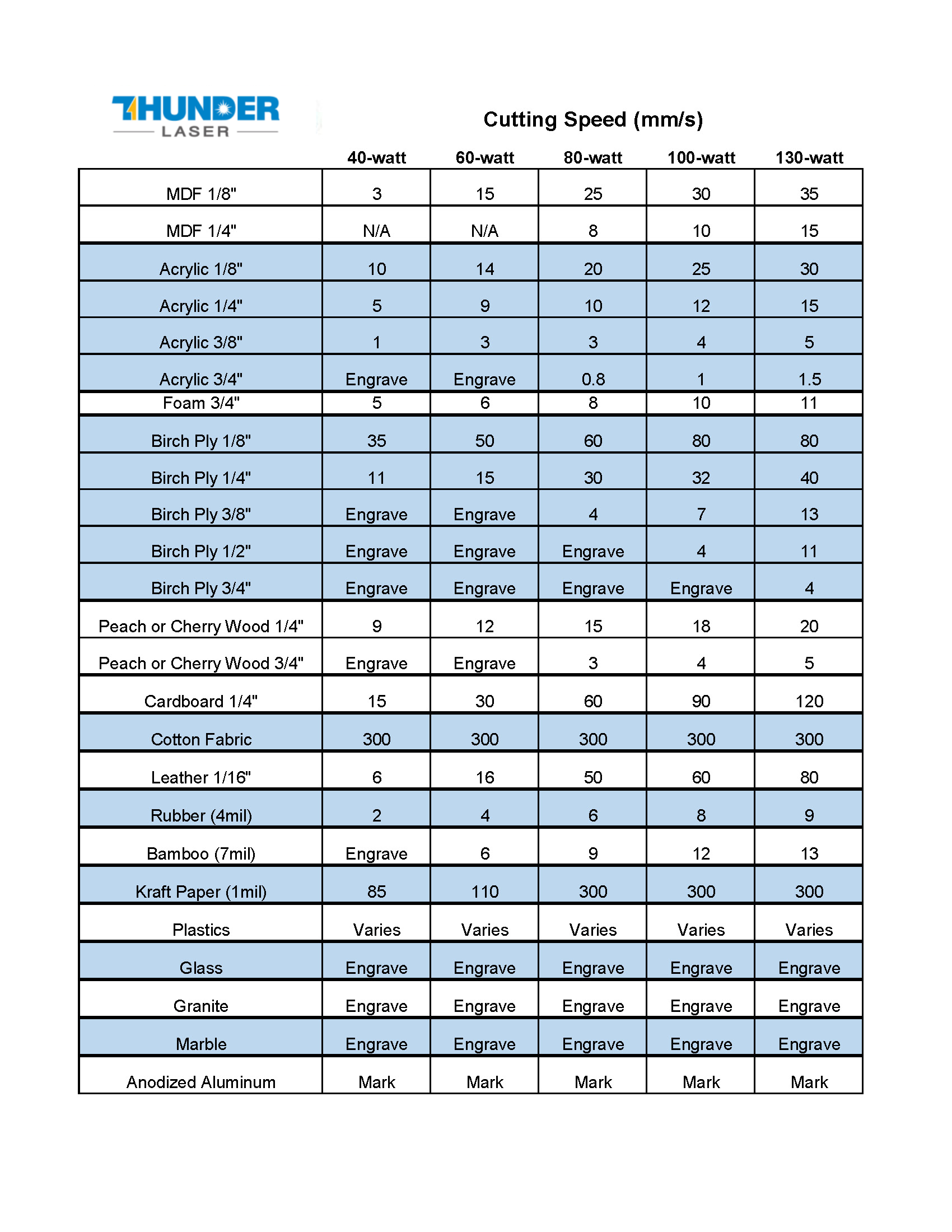

If you are calculating cutting speed into your ROI and are trying to decide what wattage you need, you may want to have a look at this:

​
