Introduction of parts in Tool box that comes with Thunder Laser Cutter

Introduction of parts in Tool box that comes with Thunder Laser Cutter

Introduction of parts in Tool box that come with Thunder Laser system Nova series



1.Focus ruler

2.Lens opener

3.Lens cleaner and clean cloth

4.6mm Nozzle

5.Magnets

6.Lubricating oil

7.X/Y Limit switch

8.Allen driver

9.Clamp

10.Sspare belt

11.Pocket knife

12.Reverse compensation setting

13.Acrylic

14.Spare laser power supply fuses

15.Ruler

16.Screwdriver

17.Cable ties

18.PC and Ethernet cable


----------------------------------------------------------------------------------------------------------------

1.Focus ruler


Ensure correct focus between laser head and material (6mm).


2.Lens opener


Fixed ring for opening reflector and focusing lens.


3.Lens cleaner and clean cloth


Frequent cleaning of the lenses helps to extend the life of the lenses.


4.6mm Nozzle


Provides a soft blowing effect.


5.Magnets


We need to make sure that the material is flat enough or it may not be in focus.


6.Lubricating oil


Reduced friction between pulleys and guide rails.


7.X/Y Limit switch


Make the X/Y axis work within the specified range.


8.Allen driver


Adjusting the tightness of the belt and the fixed pulley.


9.Clamp


Used with the Allen driver to adjust the tightness of the fixed pulley.


10.Sspare belt


If the original belt is badly worn, it needs to be replaced.


11.Pocket knife


Cut the cable ties.


12.Reverse compensation setting


Parameters for optimizing machine engraving effects, ach machine’s parameters are unique.


13.Acrylic


Testing the power of the laser for proper functioning There will be instructions in the link here:

How to judge if the laser power become weaker?


14.Spare laser power supply fuses


When the laser power fuse blows, replace it.


15.Ruler


16.Screwdriver


17.Cable ties


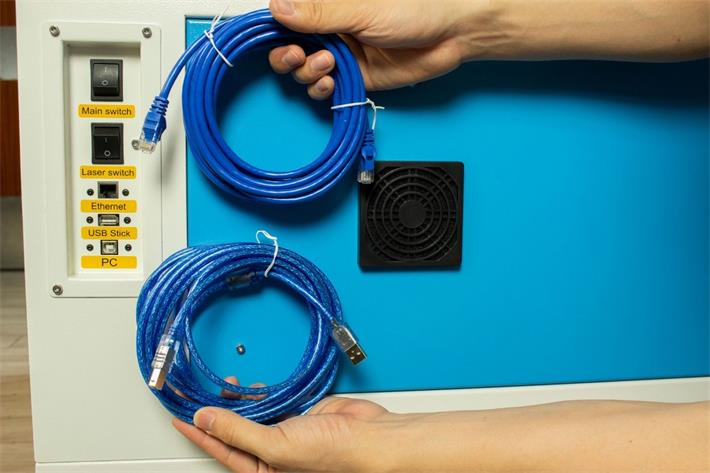

18. PC and Ethernet cable

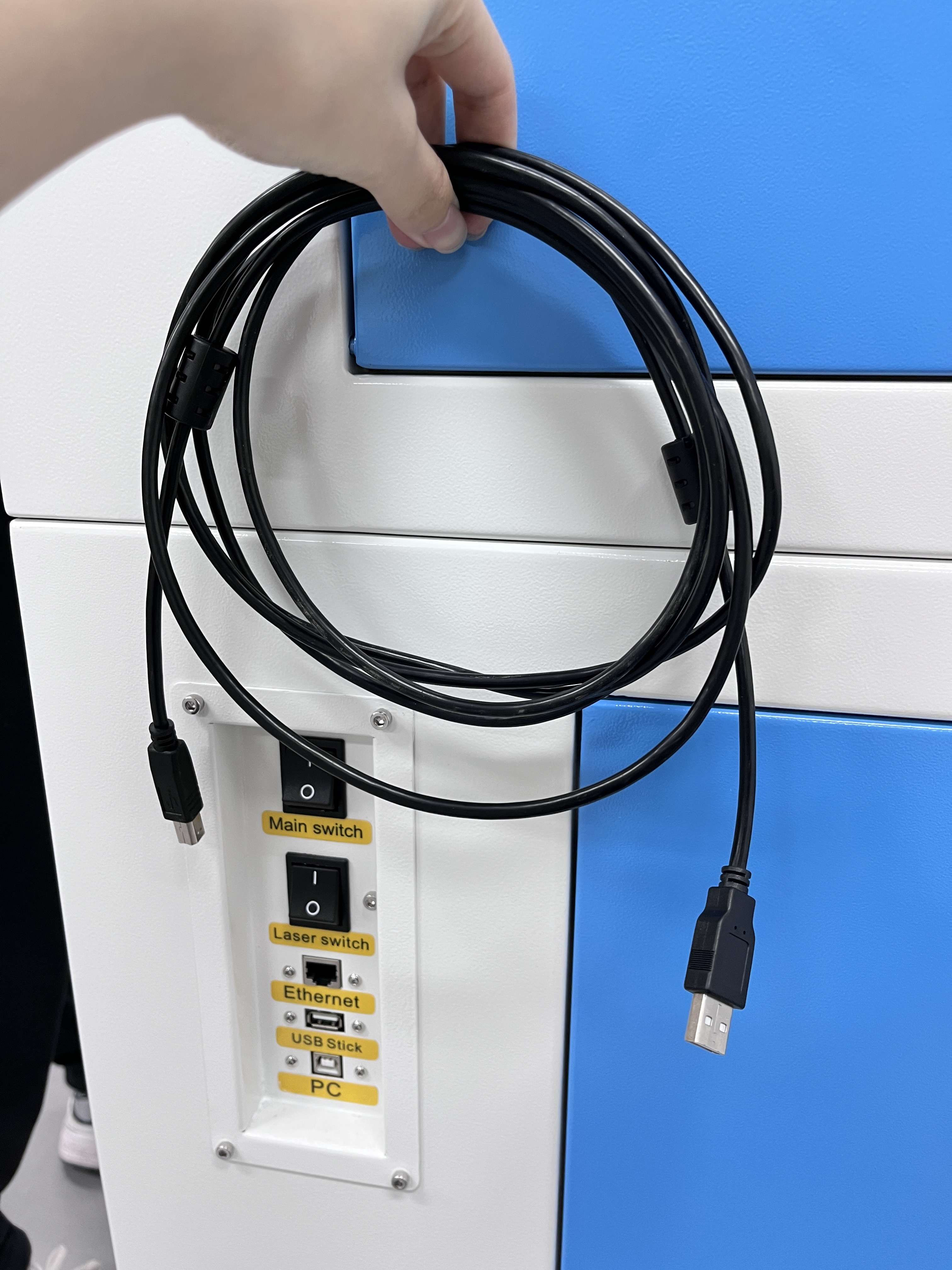

Around March 2021, use a black 3m data cable


Connect with the machine.
