Inspecting and cleaning Nova series optics

Inspecting and cleaning Nova series optics


Thanks to Robert Kofoed for the video!


This article is for Nova series machines.


Proper care and routine maintenance of the machine will ensure optimal performance over a long service life.


It is imperative that you remove, inspect, and clean your optics before running the machine for the first time.


Mainly because you need familiarize yourself with this procedure as you will be inspecting your optics at least once daily and cleaning and adjusting as required.


And also because we have seen the optics (particularly the mirrors) being received tarnished, possibly due to environmental conditions during transport, etc... Every machine is tested before it leaves the factory but the optics can get fouled. We have determined that the optics are not damaged, so clean them up and you will be good to go.


This is what can happen if you don't frequently check your optics:



Here is the PM Checklist:


DAILY CHECK LIST

☑ Focus lens

WEEKLY CHECK LIST

☑ Reflector

☑ Laser combiner

☑ Keep machine clean

MONTHLY CHECK LIST

☑ Rails and Screws

☑ Laser beam path

☑ Exhaust fan

☑ Water Chiller


● DAILY CHECK LIST

• Focus lens


1.Remove the laser head  

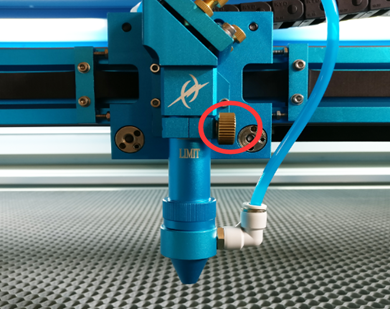

2. Divide the laser head

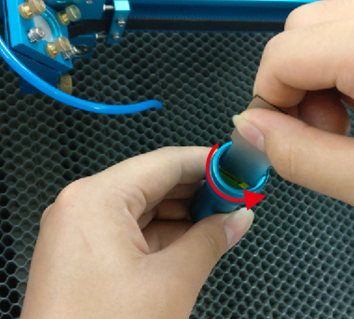

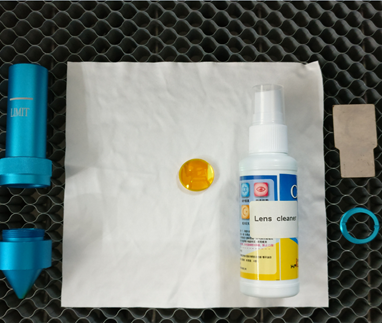

3. Remove the focus lens with the tool  

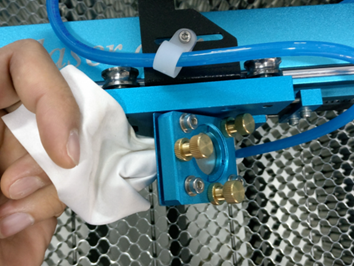

4. Clean the lens with lens cloth



              

       

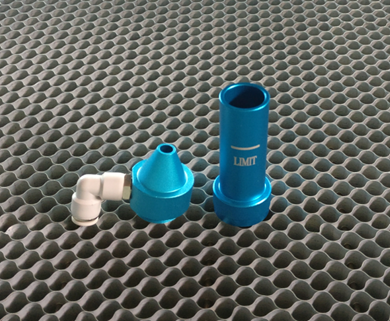

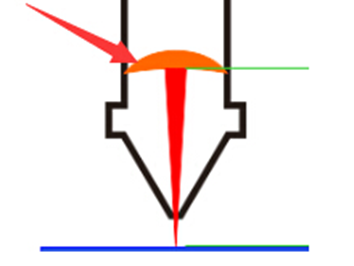

Note: The direction of focus lens mounting please refer to below picture：


● WEEKLY CHECK LIST

• Reflector

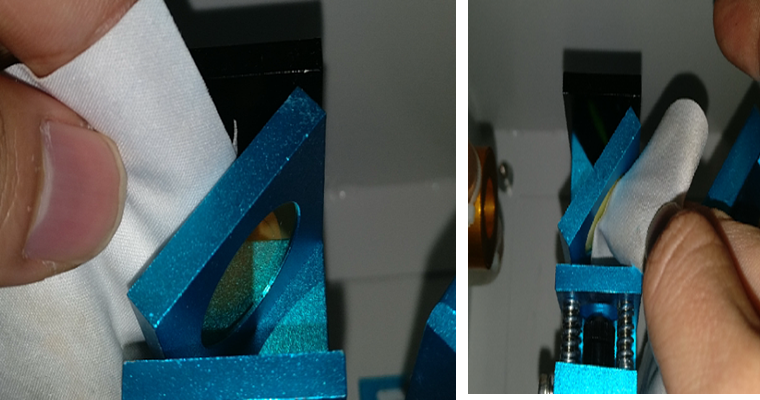

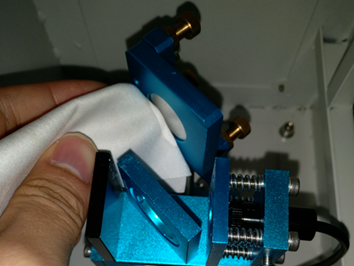

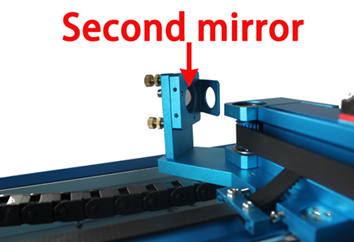

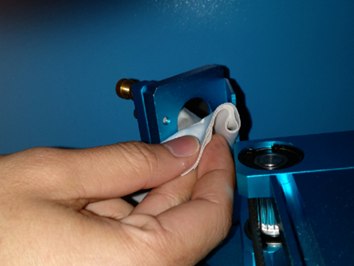

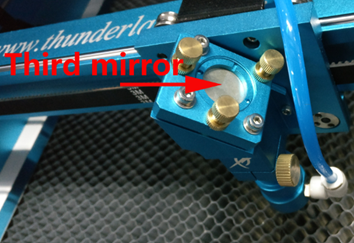

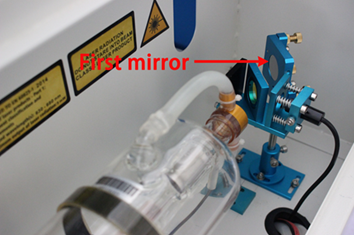

Use a lens cloth and lens cleaner to keep all mirrors clean

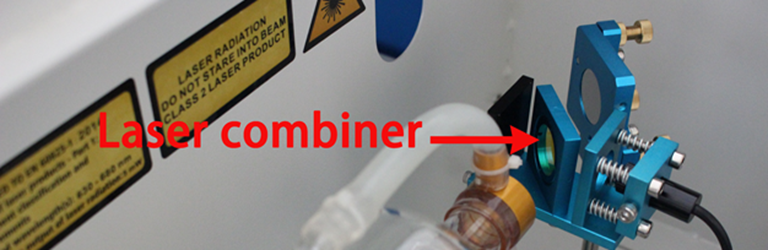

• Laser beam combiner

Use a lens cloth and lens cleaner to keep combiner lens clean.



    • Related Articles

    • Nova Series User's Manual

      Please see attached: END

    • Common focus lens failure

      While your optics can last years if properly maintained, it is a good idea to have a spare optics kit around just in case. 99% of all optic failures are due to not properly maintaining them and/or not having adequate air assist. It is vitally ...

    • Why does the glass tube's power is unstable

      Problem description： The laser power is unstable in the same layer, which causes different depths of graphics in different positions in the same layer. Reason： 1. The focus lens & reflector mirrors is dirty Dirty lenses reduce the laser reflectivity ...

    • Odin Series User's Manual

      Please see attached: END

    • Cleaning your stock exhaust fan

      This is what can build up in your exhaust system, especially the fan, and can cause critical failure so its important to regularly maintain your exhaust system. Here is how to clean the W150 Inline Fan that ships with the Mini 60 and Nova 24: Here is ...
