How to setup wireless network connection for Thunderlaser machine

How to setup wireless network connection for Thunderlaser machine





Here's what you'll need:

  • A computer with wireless capability
  • A wireless router
  • An Ethernet cable
  • A Thunder laser system

Step:

1. router setup

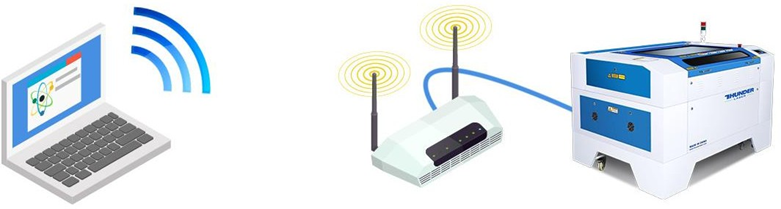

Use the Ethernet cable to connect the wireless router to the Ethernet port on your laser system. Connect the power to the router.



2. Configure computer

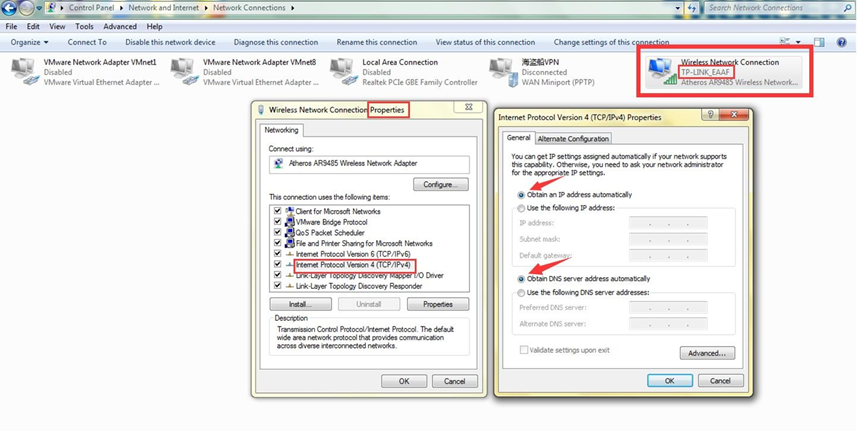

Go to Start>>Control Panel>>Network and Sharing Center.

Right click on your Wireless Network Connection and then select Properties.

In internet protocol version 4(TCP/IPv4) Properties window select Obtain an IP address automatically, like below.




After that, click OK to exit all windows.



3. Configure laser cutter machine

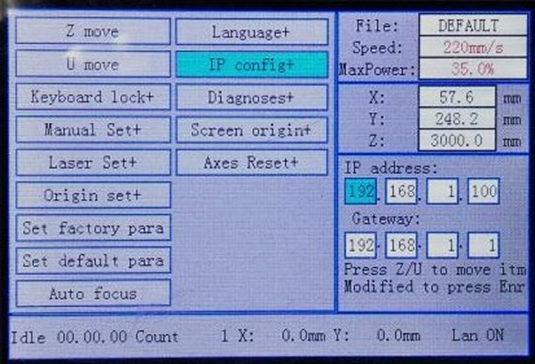

Go to LCD Panel>>Z/U Button>>IP config+.

Default machine IP: 192.168.1.100, and you should set the Gateway same with router IP.

Our router IP is 192.168.1.1, so set gateway as 192.168.1.1, like below:



4. Configure laser cutter software

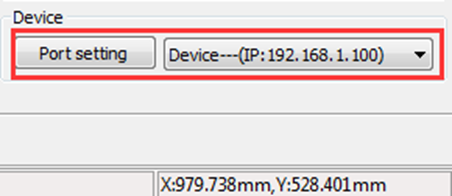

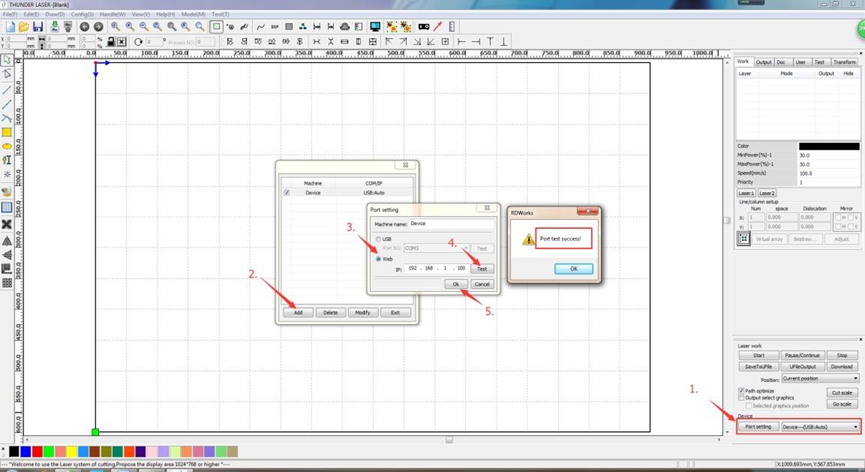

Add and select the Web port on RDWorks, like below.

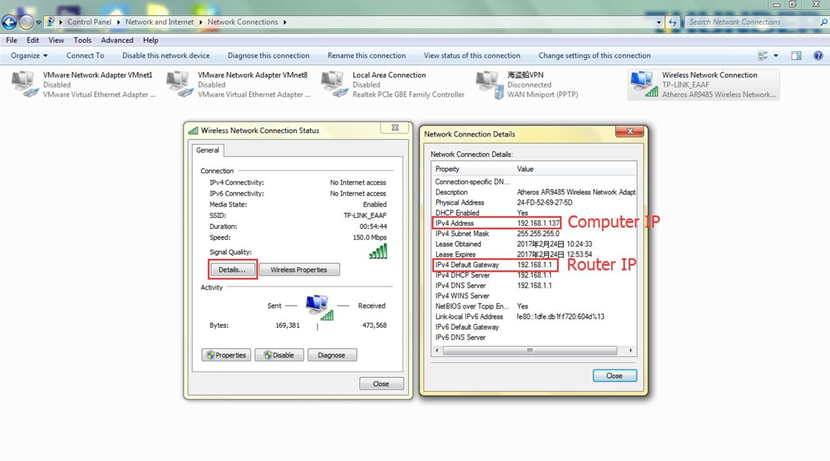

Note: please check the current IP for computer and router and avoid IP address conflicts from the laser machine and software.





End.
